Combination application of PCB double-layer board and flexible circuit board

As the demand for innovation and flexibility in the electronics industry continues to grow, the combined application of PCB double-layer boards and flexible circuit boards is gradually becoming a new trend in electronic design. The combined application of PCB double-layer boards and flexible circuit boards brings new ideas and solutions to the design and manufacture of electronic equipment. This combination not only optimizes space utilization, but also improves the flexibility and reliability of the equipment.

1. Combination of PCB double-layer boards and flexible circuit boards

PCB double-layer boards provide a stable circuit substrate and good electrical performance, while flexible circuit boards, with their thin and bendable characteristics, provide greater freedom in the design of electronic devices. By combining these two technologies, engineers can achieve more complex circuit layouts in limited space while maintaining the compactness and flexibility of the design.

2. the combination of PCB double-layer boards and flexible circuit boards can be reflected in many aspects:

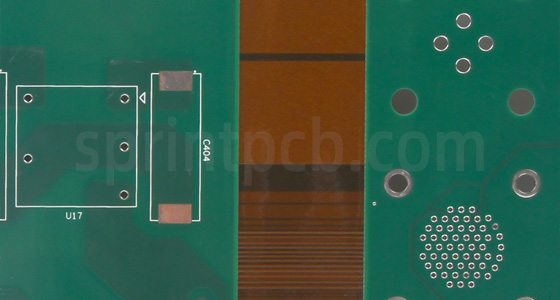

Space optimization: By integrating flexible circuit boards on rigid double-layer PCBs, electronic components can be laid out more efficiently in three-dimensional space, saving valuable space.

Dynamic bending: Flexible circuit boards can be bent without damaging the circuit, which is suitable for devices that require dynamic bending or folding, such as wearable devices or portable electronic products.

Complex layout: Flexible circuit boards can easily achieve complex circuit paths, which may be difficult to achieve on traditional rigid PCBs.

Thermal management: Flexible circuit boards can be designed into specific shapes to optimize heat conduction paths and improve the heat dissipation efficiency of equipment.

Signal integrity: Flexible circuit boards can reduce interference in signal transmission and improve signal integrity.

Cost-effectiveness: Although the cost of flexible circuit boards may be higher than that of traditional PCBs, the design flexibility and performance improvement they bring can reduce the cost of the overall system.

The combined application of PCB double-layer boards and flexible circuit boards is driving electronic devices towards smaller size, higher performance and higher reliability. With the continuous advancement of technology, this combined application will show its unique value in many fields such as medical devices, smart phones, aerospace and automotive electronics.

The combined application of PCB double-layer boards and flexible circuit boards not only solves some limitations in traditional PCB design, but also provides designers with more room for innovation. In the future, it is foreseeable that this technology will be used in more high-tech products, pushing the functions and performance of electronic equipment to new heights. By continuously exploring and optimizing this combined application, electronic design will have unlimited possibilities, bringing users a richer and more advanced electronic product experience.
