Precision PCB board processing manufacturer

Precision PCB board processing manufacturers use superb technology and professional equipment to produce precision circuit boards to meet the needs of various high-end electronic products. The following will introduce in detail the technical strength, advanced processing equipment and strict processing environment of precision PCB board processing manufacturers.

1. Technical strength of precision PCB board processing manufacturers

Precision PCB board processing manufacturers usually have a research and development team composed of experienced engineers and technical experts who are proficient in circuit design, material science and manufacturing processes. These manufacturers use advanced PCB design software and can customize the design according to customer needs to ensure that the layout of the circuit board is reasonable and the signal transmission is stable.

2. High-precision processing equipment

Precision PCB board processing manufacturers are equipped with a series of high-precision processing equipment, including but not limited to:

Laser photoplotter: used to accurately transfer circuit design to PCB board.

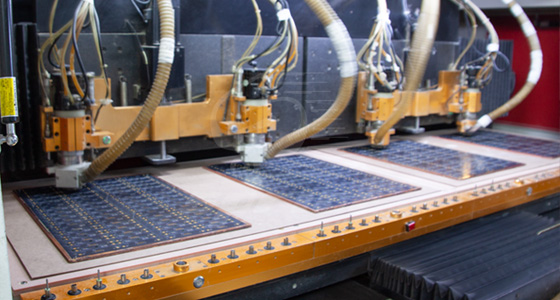

High-precision drilling machine: capable of drilling tiny and precise holes to meet the needs of high-density wiring.

Laminator: used for lamination of multi-layer PCB boards to ensure close bonding between layers.

Automatic plating line: realize uniform plating of hole walls and improve conductivity.

Automated etching line: accurately remove unnecessary copper foil to form circuit patterns.

SMT placement machine: automatically and accurately place electronic components on PCB boards.

3. Strict processing environment

Precision PCB board processing manufacturers have strict requirements for the processing environment to ensure the stability and consistency of product quality:

Constant temperature and humidity: Control the temperature and humidity of the workshop to prevent the material from being deformed or damaged due to environmental changes.

Dust-free workshop: Use advanced filtration system to reduce the impact of dust and other particles on PCB boards.

ESD protection: Implement electrostatic discharge protection measures to protect sensitive electronic components from electrostatic damage.

Precision PCB board processing manufacturers provide customers with high-quality PCB board products with their professional technology, advanced equipment and strict processing environment. Pulin Circuit said that in the future, it will continue to pursue technological innovation and process improvement to meet the growing market demand and promote the sustainable development of the electronics industry.
